DESIGNER KITS


PDF
DK001
  • Frequency: DC~18GHz
  • Precision Machine Housing
  • RoHS Compliant
      DK001 Body DK001 Lid
      DK001 SMA Female      DK001 SMA Female
      DK001 feed thru           DK001 ground
      DK001 6 screws       DK 4 screws
  • Dimension: 1.0" x 1.3" x 0.4"
  • Material: Aluminum 6061
  • Finish: Clear Conductive Coating
  • PCB Core Thickness Supported: 20~40mil


 DK002
  • Frequency: DC~27GHz
  • Precision Machine Housing
  • RoHS Compliant
            DK002 Body    DK002 Lid
            DK002 SMA Female              DK002 SMA Male
            DK002 feed thru             DK002 ground
                DK002 2 screws       DK 4 screws
  • Dimension: 0.5" x 0.7" x 0.4"
  • Material: Brass
  • Finish: Gold Plated
  • PCB Core Thickness Supported: 20mil
Sub-Model SMA Connector
DK002-1SMA Female x 2
DK002-2SMA Male x 2
DK002-3SMA Female x 1,
SMA Male x 1

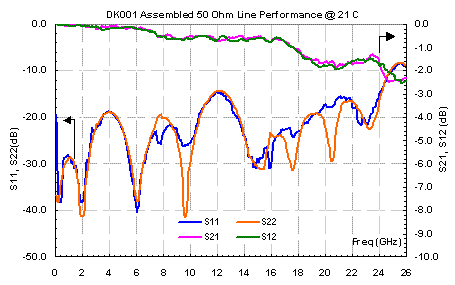

DK001 Performance

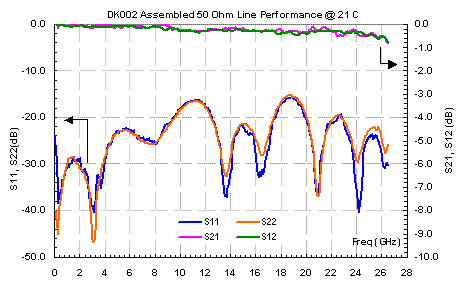

DK002 Performance
  Model    Option    Price    Order
DK001 No 50 ohm Line $49
    50 ohm Line     $69
DK002 No 50 ohm Line $49
    50 ohm Line     $69
